Do you think a BMS can truly protect every lithium pack you own, from tiny 18650 builds to multi‑string setups? The truth depends on matching chemistry, voltage range, and proper cooling, plus the right balance method. If you’re curious about which systems consistently deliver overcharge, overdischarge, and current protection—with options from passive to active balancing—there’s more to uncover before you buy. Let’s explore the top picks and what makes them worth considering.
Key Takeaways
- Choose BMS units that match your pack chemistry and configuration (3S–20S, Li-ion vs LiFePO4) for proper voltage and protection ranges.
- Prioritize models with comprehensive protections: overcharge, overdischarge, overcurrent, short-circuit, and temperature monitoring.
- Favor BMS options offering balance charging or passive balancing to maintain cell equality in series packs.
- Consider current capability and cooling needs; ensure continuous/peak ratings suit your high-drain or compact builds.
- Verify installation requirements, wiring conventions, and per-cell monitoring quality to ensure reliable SOC accuracy and safety.
5pcs 18650 Battery Protection Board BMS + Nickel Strips
If you’re building a 4S Li-ion pack and need a ready-to-use protection solution, the TECNOIOT 5pcs 4S40A BMS with nickel strips stands out for ease of use: it ships as a complete set (five protection boards plus five nickel strips) and supports a nominal 16.8V pack with a robust 40A continuous discharge current, making it a solid choice for hobbyists and small-scale builds who want reliable, plug-and-play protection. This set includes five 4S40A boards, five nickel strips, and guidance for wiring and safety. Note the absence of equalized charging and the need for matched cell groups.
Best For: hobbyists building compact 4S Li-ion packs who want a ready-to-use protection solution with plug-and-play boards and nickel strips.
Pros:
- Complete, ready-to-use set (five protection boards + five nickel strips) for quick assembly
- 4S protection with a strong 40A continuous discharge rating suitable for moderate packs
- Clear guidance for wiring and safety, with no equalized charging feature
Cons:
- No equalized charging function, requiring matched cell groups
- Requires careful soldering and correct wiring to avoid shorts; not ideal for beginners
- Single-entry protection for four 18650 groups, which may limit scalability for larger packs
2Pcs 5S BMS 100A Li-ion Balance Charging Module
This 5S BMS 100A Li-ion module is ideal for DIYers and hobbyists building safe, balanced 5-cell packs. You get a 2-pack set that protects and balances 5S Li-ion, LMO, LCO, and ternary chemistries with a built-in balance charging feature. It supports overcurrent, overdischarge, and overcharge protections, plus wire protection and a stable designated chip. The module uses 15 high-power MOS tubes, offering 60A discharge and charge in same-port mode, or 80A discharge with 60A charge in different-port mode. Dimensions run 13.3 by 11.3 by 0.9 cm, about 30 g per package.
Best For: DIY hobbyists and tinkerers building safe, balanced 5S Li-ion packs who need a 2-pack BMS with balance charging and multiple protection features.
Pros:
- Provides overcurrent, overdischarge, and overcharge protections with balance charging for 5S packs
- Flexible port configurations: same-port mode (60A/60A) or different-port mode (80A discharge, 60A charge)
- Compact 13.3 x 11.3 x 0.9 cm package with lightweight (~30 g per package) and 2-pack set
Cons:
- Requires careful wiring and understanding of 5S pack balance charging to avoid misconfiguration
- May be overkill for very small or single-use Li-ion packs
- Free-spinning performance depends on battery chemistry compatibility and proper heat management
12V 6Ah LiFePO4 Battery with BMS Protection
The 12V 6Ah LiFePO4 Battery with BMS Protection stands out for compact, rugged reliability in RV, marine, and off-grid setups. You’re getting a 12V, 6Ah LiFePO4 pack from MOUDENSKAY with four cells and a marine terminal, IP65-rated for rugged environments. It delivers safer, cleaner energy, lighter weight (about one-third of lead-acid), and 3–5× the density, plus fast charging—roughly 5 hours to 70%. The built-in BMS guards against over-charge, over-discharge, over-current, and short-circuit, extending deep-cycle life to thousands of cycles. Use a LiFePO4 charger, mind the limit against fully automatic SLA chargers, and enjoy easy installation. Warranty runs 12 months.
Best For: Boaters, RV travelers, and off-grid enthusiasts needing a compact, durable 12V LiFePO4 battery with reliable BMS protection.
Pros:
- Safe, clean energy with no corrosive liquids or gas leakage
- Lightweight and compact, about one-third the weight of lead-acid with high energy density
- Long cycle life (thousands of cycles) and protective BMS against over-charge, over-discharge, over-current, and short-circuit
Cons:
- Requires a LiFePO4-specific charger and may not be compatible with fully automatic SLA chargers
- Limited information on charging current and real-world runtime under heavy loads
- 12-month warranty window may be short for long-term heavy-use applications
DIY 12V No-Weld BMS for 4S1P Lithium Battery Pack
Looking for a compact, no-weld BMS solution for a 4S1P pack? This DIY 12V BMS delivers a no-weld, 4-string Li battery protection board with a matching battery box, configurable for 4s1p, 4s2p, or 4s4p. It supports 15V nominal, with protection against overcharge, overdischarge, current faults, temperature, and voltage equalization. Each board has a 15A fuse to isolate cell groups. Use a 16.8V charger per layer, limited to 1A per layer. Sizes vary—from 110×85×20/45 mm (4s1p) to larger plates for higher currents. Batteries aren’t included; orientation must align with the PCB.
Best For: DIY enthusiasts seeking a compact, no-weld 4S1P Li-ion protection solution with configurable options and integrated safety features.
Pros:
- No-weld installation with a compact 4S1P design and scalable configurations (4s2p, 4s4p).
- Integrated protections (over/under charge, discharge, current faults, temperature, and voltage equalization) with a 15A fuse per board for isolation.
- Includes a matching battery case/board and clear orientation requirements, facilitating quick assembly and compatibility.
Cons:
- Batteries are not included; user must source compatible cells and ensure proper orientation to the PCB.
- Requires careful handling and adherence to safety guidelines; limited to DIY enthusiasts.
- Charging guidance is per layer (up to 1A) and uses a 16.8V charger, which may constrain fast-charging setups.
eMagTech 4S High Current Battery Protection Board
If you need robust 4S protection with high current handling, the eMagTech 4S High Current Battery Protection Board delivers up to 15A continuous protection (30A peak) and automatic reactivation after faults. Designed for 18650 Li-ion packs, it supports voltages of 14.4V, 14.8V, and 16.8V, providing overcharge, overdischarge, overcurrent, and short-circuit protection. With automatic activation, protection resets when conditions normalize, extending pack lifespan. Each board measures 5 x 2.2 cm, and the kit includes four protection boards. Electrical specs indicate 15A normal current (10A without heat sink), 30A instantaneous surge, and relieves at 4.15V and 3.0V. Manufacturer: eMagTech. Warranty follows Amazon policy.
Best For: users building or maintaining 4S Li-ion packs (18650) who need high-current protection with automatic reactivation.
Pros:
- High current protection up to 15A continuous (30A peak) for robust 4S packs
- Comprehensive protection: overcharge, overdischarge, overcurrent, and short-circuit
- Automatic protection reactivation once fault conditions normalize
Cons:
- Requires heat management: 15A is with proper cooling (10A without a heat sink)
- Only compatible with 4S configurations and specific voltage ranges (14.4–16.8V)
- Includes four boards in the kit, which may be overkill for small builds or single-cell projects
AZDelivery 5 x PCB Protection Board (25A 3S)
AZDelivery’s 5x PCB Protection Board stands out for setups needing solid 3S protection with ample current, delivering 25A per pack. You get five protection channels with 11.1V input and output, tailored for 3S Li-ion packs. The board uses a high-accuracy voltage detection circuit and supports fast, safe charging through an intelligent lithium cell management IC. It safeguards against overcharge, over-discharge, short circuit, and temperature spikes, with multiple load and aging tests backing quality. An included E-Book guides project setup, installation, and practical usage. Compatible, durable, and CE certified, it suits compact, multi-pack configurations without extra complexity.
Best For: Those building compact multi-pack Li-ion systems requiring reliable 3S protection with high current capacity and CE-certified safety.
Pros:
- Five independent protection channels (5x) for flexible multi-pack configurations
- High-accuracy voltage detection with intelligent cell management IC for safe charging
- CE certified and subjected to load and aging tests for quality assurance
Cons:
- 11.1V input/output may limit use with non-3S configurations
- 25A per pack may be overkill for small-scale projects needing lower current
- Includes an E-Book but may require extra guidance for advanced custom setups
20S 72V BMS with Balance Wire and NTC
The S 72V BMS with Balance Wire and NTC is ideal for builders seeking precise cell monitoring and safe solar storage. You’ll get a 20S 72V Lithium Ion protection board with balance wire and NTC, designed for 18650 cells in EVs or solar systems. It provides overcharge, overdischarge, overcurrent, short-circuit, temperature, and waterproof protections, with temp operation ranges from -20°C to 70°C. It uses common port wiring (B-, C-, positives) and demands tight matching before install. Voltage per cell is 2.65–4.25V; SOC accuracy is high, and disconnection protects against mismatches. Recommended charging under 10A; 7.6×5.1×2.5 cm, 0.3 kg.
Best For: Builders and technicians needing precise cell monitoring and protection for 20S 72V Li-ion packs in EVs or solar storage, who have the expertise to assemble and match cells correctly.
Pros:
- Comprehensive protection: overcharge, overdischarge, overcurrent, short circuit, temperature, and waterproofing.
- Precise monitoring: SOC accuracy and string voltage monitoring with disconnection protection for mismatches.
- Suitable form factor and features: balance wire and NTC included; common port wiring for pack integration; compact size (0.3 kg, 7.6×5.1×2.5 cm).
Cons:
- Requires professional electrical knowledge for proper assembly and matching.
- Tight pre-install matching criteria (voltage, impedance, capacity) to prevent charging issues.
- Charging guidance indicates recommended charging current below 10A and 84V charger, which may constrain higher-rate charging setups.
15S 48V 50A LiFePO4 BMS with Protections
This S 48V 50A LiFePO4 BMS stands out for demanding 15S packs with robust protections and precise per-string monitoring. You’ll get a 15S 48V 50A protection board with balance wire, NTC, ten protections, and a common port, designed for 3.2V LiFePO4 packs. It uses passive voltage balancing and monitors each string, with SOC accuracy high; mismatches can trigger disconnection protection. Expect voltage 2.3–3.65V per cell, -20°C to 70°C operation, and instantaneous current 3–5× nominal. Wiring: B– pack negative, C– charging negative, all positives together. Install requires professional electrical knowledge; keep section voltage and resistance differences within spec. Charging typically below 5A.
Best For: Individuals building professional-grade 15S LiFePO4 battery packs requiring precise per-string monitoring and robust protections.
Pros:
- Precise per-string voltage monitoring with high SOC accuracy and protection triggers for mismatches.
- Robust protection features including over/under voltage, over current, short-circuit, and temperature protections.
- Passive balancing with a common port and high instantaneous current capability (3–5× working current).
Cons:
- Requires professional electrical knowledge for installation and assembly.
- Semi-finished product; matching voltages, resistances, and capacities across cells must be carefully verified.
- Charging guidance recommends keeping charging current below 5A, which may be slower for high-capacity packs.
2-Pack PCB Protection Board for Li-ion Batteries
If you’re building a compact 3S Li-ion pack, this 2-pack PCB protection board from Youmile stands out with a 40A continuous discharge limit and 20A charging capacity, giving you solid protection without bulky hardware. The kit includes two boards and a 50 cm 14 AWG wire, compatible with 11.1–12.6V systems. It supports charging up to 13.6V and overdischarge protection around 2.5V, while staying functional from −40°C to +50°C. Ideal for drills and motors, it emphasizes precise voltage detection and robust construction. Remember to use copper wire and follow the 0V/4.2V/8.4V/12.6V wiring diagram to prevent chip damage.
Best For: Builders of compact 3S Li-ion packs needing solid protection with decent continuous discharge (up to 40A) and a 20A charge limit for drills, motors, and similar applications.
Pros:
- Solid protection with 40A discharge and 20A charging capabilities.
- Includes two protection boards and a 50 cm 14 AWG wire for easy wiring.
- Wide operating temperature range and precise voltage detection for reliability.
Cons:
- Requires copper wiring and correct 0V/4.2V/8.4V/12.6V wiring to avoid chip damage.
- Not suitable for high-current starting applications beyond the stated limits (drills under 80A starting current / 130W).
- Only supports up to 3S configuration and nominal packs around 3.7–4.2V per cell.

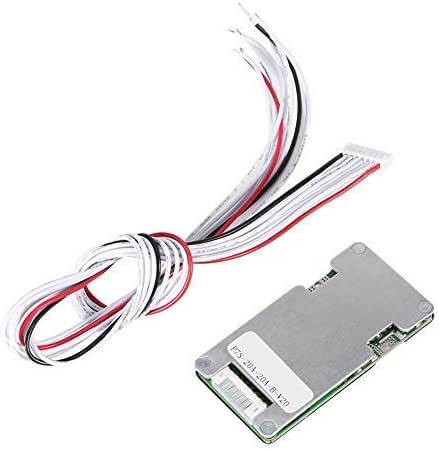

Nikou 24V 20A BMS Battery Protection Board
Looking for solid protection for a 7S Li-ion or LiFePO4 pack? The Nikou 24V 20A BMS Protection Board is built for 7-series packs (7S) and works with 18650 Li-ion and LiFePO4 chemistries. It delivers overcharge, overdischarge, overcurrent, and short-circuit protection, plus core hardware balancing with appropriate balance current and heat management. It uses aluminum for MOSFET cooling and keeps quiescent power low. Specs include 24 V output, up to 29.75 V input, and 5 A continuous rating (20 A peak). Compact at 7D × 33W × 7H mm, gray finish, Nikou PROTECTION-BOARD415. Warranty aligns with Amazon return policy.
Best For: builders and hobbyists seeking reliable protection for 7S Li-ion or LiFePO4 packs (up to 29.75 V) with solid overcharge, overdischarge, overcurrent, and short-circuit protection and active balance.
Pros:
- 7S compatibility with multiple chemistries (Li-ion and LiFePO4) and high peak current handling (20 A peak)
- Core hardware balancing and effective heat management via aluminum MOSFET cooling
- Low quiescent power consumption and compact 7D × 33W × 7H mm form factor
Cons:
- Continuous current rating of 5 A may be limiting for larger packs or high-drain applications
- Requires correct wiring and configuration for 7S packs to avoid misprotection
- Limited to 24 V output and specific chemistry range (3.6–3.7 V per cell) which may not fit all pack designs
Factors to Consider When Choosing Lithium Battery BMS Systems
When selecting a lithium battery BMS, you’ll want to check battery chemistry compatibility and ensure the protection features cover your setup. Consider the current ratings limits and the balancing method type, so you don’t outgrow the pack or create uneven cell conditions. Also review installation requirements to verify mounting, wiring, and enclosure needs fit your system.
Battery Chemistry Compatibility
Choosing the right BMS starts with matching the cell chemistry and pack configuration. Different chemistries, like Li-ion and LiFePO4, need protection voltage ranges aligned to each cell type. A BMS must match your nominal voltage and series count (3S, 4S, 5S, 7S, 12V, 24V) so per-cell voltages and balance currents are monitored correctly. Balance charging and protection features must fit the chemistry’s charging characteristics, including maximum per-cell voltage (4.2V for Li-ion vs. ~3.6–3.65V for LiFePO4). Internal resistance and balance current settings should suit the battery chemistry to minimize heat and ensure effective balancing during charging. Some designs use passive or active balancing; compatibility with the chemistry’s charging/discharging behavior determines whether balancing improves longevity and safety.
Protection Features Scope
Protection features are the core guardrails of any BMS, and you should size them to your pack’s risks and usage. You’ll want overcharge, overdischarge, overcurrent, short-circuit, and temperature protections to safeguard cells during charging, discharging, and fault conditions. Some BMS units offer balance charging or passive balancing to equalize voltages across series packs during charging, which helps maintain pack balance over time. Temperature protection ranges vary, with common triggers around -20°C to 70°C, and protective actions may depend on heat sink use or cooling conditions. Maximum instantaneous/current protection differs—15A to 30A per board, or 60–100A in multi-channel configs—so match to pack size and configuration. Protection boards may use common or individual per-string connections, influencing how failures trigger disconnection or protection events.
Current Ratings Limits
Current ratings determine how your pack handles power under real use, so you must match discharge and charge capabilities to your thermal and electrical setup. Continuous discharge current ratings vary, with common values around 15–40 A per board, and higher-end modules offering 60–80 A in certain configurations. Continuous charge currents are typically lower than discharge, often in the 10–60 A range depending on the design and cooling capabilities. Instantaneous or peak current ratings can exceed continuous ratings (e.g., 30–80 A) for short durations, but protection triggers may occur if heat or impedance limits are exceeded. Board ratings are often specified per string or per channel (e.g., 4S or 5S configurations) and depend on cell count and series balance requirements. Adequate cooling and proper matching of cell internal resistance and capacity are critical to safely achieving the stated current limits.
Balancing Method Type
Balancing method type matters because it directly affects safety, charge time, and cycle life. In your choice, you’ll encounter passive balancing, which discharges high-voltage cells through resistors to even voltages during rest or charging. You’ll also see active balancing, which redistributes charge from higher to lower voltage cells, often boosting efficiency in large packs but adding circuit complexity. Some BMS units offer balance charging with a fixed balance current, while others rely on dynamic balancing or provide no balancing at all. The mode you pick influences pack safety: passive methods gradually reduce risk by equalizing cells, while active methods can improve efficiency but require more circuitry. Consider how balancing mode aligns with your pack size, charge behavior, and desired cycle life.
Installation Requirements
Choosing a BMS isn’t just about features; it hinges on getting the installation right. Start by matching the BMS wiring to your configured pack: common 0V, 4.2V, 8.4V, 12.6V (or equivalent per series) and keep identical voltage across all cells in each group before connection. Verify the maximum charging and discharging currents suit your cells and cooling, since many boards specify 20–40A continuous with higher instantaneous limits under certain conditions. Confirm the number of series cells supported (3S, 4S, 5S, 7S, 12S, 20S, 15S) matches your pack, and whether balance charging is provided if needed. Check temperature protection ranges, ensuring ambient and pack temperatures stay within the operating window to avoid false disconnects or thermal damage. Finally, confirm mounting, connector type, and enclosure compatibility to prevent shorts and support reliable cooling.
Monitoring Capabilities
When evaluating monitoring capabilities, you’ll want a BMS that reports per-cell voltages and overall pack voltage so you can track state of charge and detect imbalances quickly. You’ll also benefit from temperature sensing and protection to prevent thermal runaway and guide cooling needs. SOC/voltage accuracy and per-string monitoring ensure safe operation and proper triggering of protection events, so you won’t miss critical thresholds. Balance charging features, whether passive or active, influence how cell voltages converge during charging and impact long‑term cell health. Assure compatibility with your pack configuration (3S, 4S, 5S, 20S, etc.) and that the number of protection channels provides appropriate granularity and coverage. Accurate monitoring supports timely decisions and reliable protection across the entire system.
Frequently Asked Questions
How Does BMS Protect Against Over-Discharge?
A BMS prevents over-discharge by monitoring cell voltages and total pack voltage, then instantly disconnecting or limiting discharge when thresholds are hit. You’ll get alerts, and the system blocks further draw to protect cells and longevity.
Can a BMS Handle High Surge Currents?
Yes, a BMS can handle high surge currents if it’s designed for it, with robust current sensing, proper MOSFETs, and adequate thermal management to avoid overheating during peak draws. Check the spec sheet for exact surge ratings.
Is Passive Balancing Sufficient for Lifepo4?
Passive balancing isn’t enough for LiFePO4 long-term health; you’ll want active balancing or cell-level management, especially under imbalance or high current. Rely on proper BMS design, monitoring, and matching cells to prevent capacity loss or safety risks.
Do BMSS Require Cell-Level Soldering or Spot-Welding?
Yes, most BMSs don’t require you to solder the cells; they use spot-welding or clamps for connections, with some pack-level modules providing plug-in headers. Guarantee proper safety, balance, and cell integrity during installation.
Can BMS Compatibility Be Verified With Existing Packs?
Yes, you can verify BMS compatibility with existing packs by checking voltage, cell count, chemistry, connector type, and communication protocol; compare datasheets, and confirm supported CAN/SMBus/BMS interfaces before integrating or updating firmware.
Conclusion
Choosing the right lithium battery BMS means you’ll disclose safer, longer-lasting packs with fewer surprises. Prioritize chemistry match, voltage range, and cooling, and balance protection with your pack’s size and current needs. Whether you DIY a compact 4S setup or opt for a rugged 20S system, the right BMS is your pack’s brain — keeping cells in harmony like a symphony conductor, preventing fires, and delivering dependable power, night after night. One choice can change everything.
